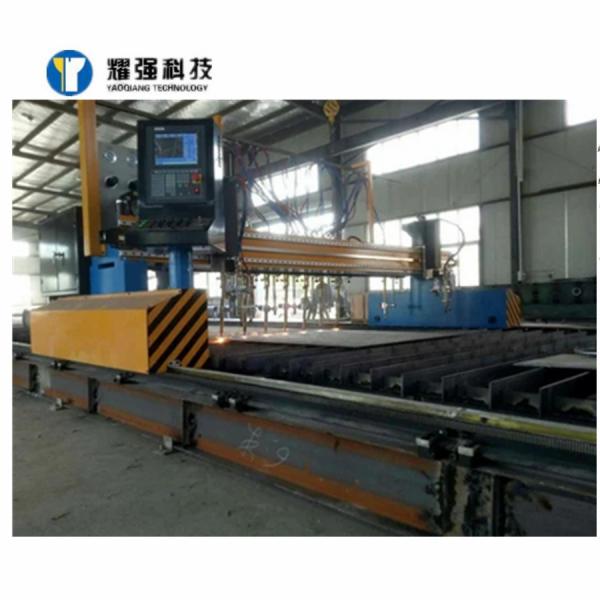

CNC Flame/Plasma Gas Cutting Machine Imported AC Motor Bevel Gear Reducer
CNC flame/plasma gas cutting machine can be applied in lot size steel sheet straight cutting, as well as irregular geometric shape cutting.
The main frame is annealed to remove stress, stable and anti-weary.
The servo motor, reducer, pressure release valve, air pipe, magnetic valve as well as cutting guns used are all world famous brand to ensure excellent cutting performance.
Specification:
The cutting machine uses imported AC motor, and driven with imported bevel gear reducer.
With precision gear and rack move, to ensure stable function.
Air cutting speed is adjusted by frequency transformer. The air source control box on the main engine can adjust air pressure from every tunnel easily.
All the pressure adjusting valve and main air pipe are original imported. Pipe and wire on the broadwise cutting gun all use imported supporting chain, safe and neat.
Factory address: Xinhong Industry park, Tangyang, Dontai City, Jiangsu Province.
| model | Drive way | two rails' distance (mm) | effective cutting width (mm) | cutting thickness(mm) | cutting speed (mm/min) | max speed (mm/min) | cutting torch vertical route(mm) |
| CNCI-3000 | single side | 3000 | 2100 | 6-200 | 100-750 | 6000 | 150 |
| CNCI-3500 | single side | 3500 | 2600 | 6000 | 150 |
| CNCI-4000 | single side | 4000 | 3100 | 12000 | 150 |
| CNCII-5000 | double sides | 5000 | 4100 | 12000 | 150 |
| CNCII-6000 | double sides | 6000 | 5100 | 12000 | 150 |
| CNCII-7000 | double sides | 7000 | 6100 | 12000 | 150 |
| CNCII-8000 | double sides | 8000 | 7100 | 12000 | 150 |
| CNCII-9000 | double sides | 9000 | 8100 | 12000 | 150 |
| CNCII-10000 | double sides | 10000 | 9100 | 12000 | 150 |
